Palermo-HS

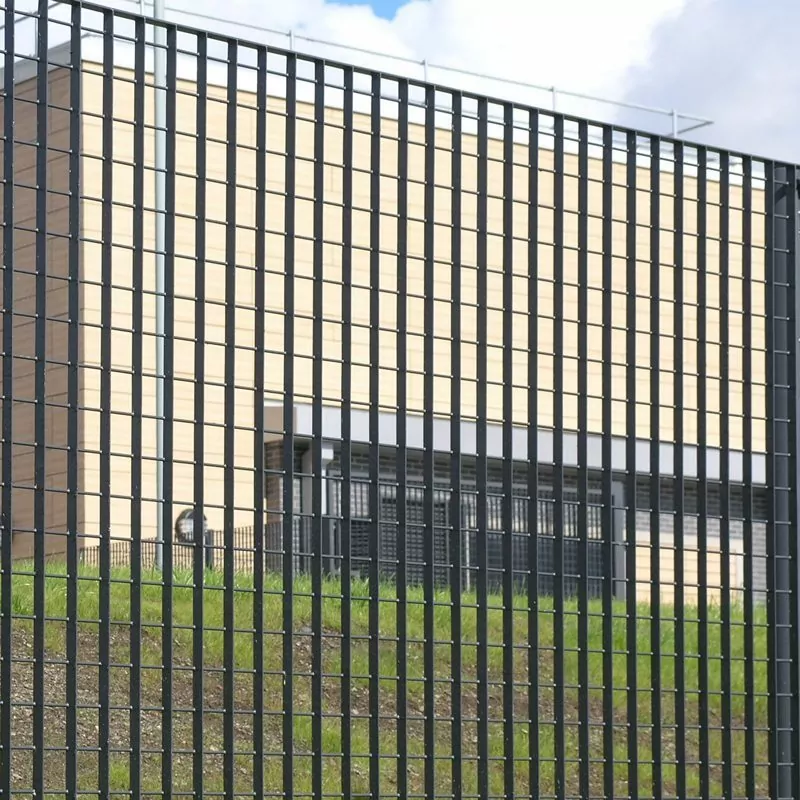

Palermo-4HS has been designed with special features to provide an extremely high level of perimeter security and excellent resistance to vandalism.

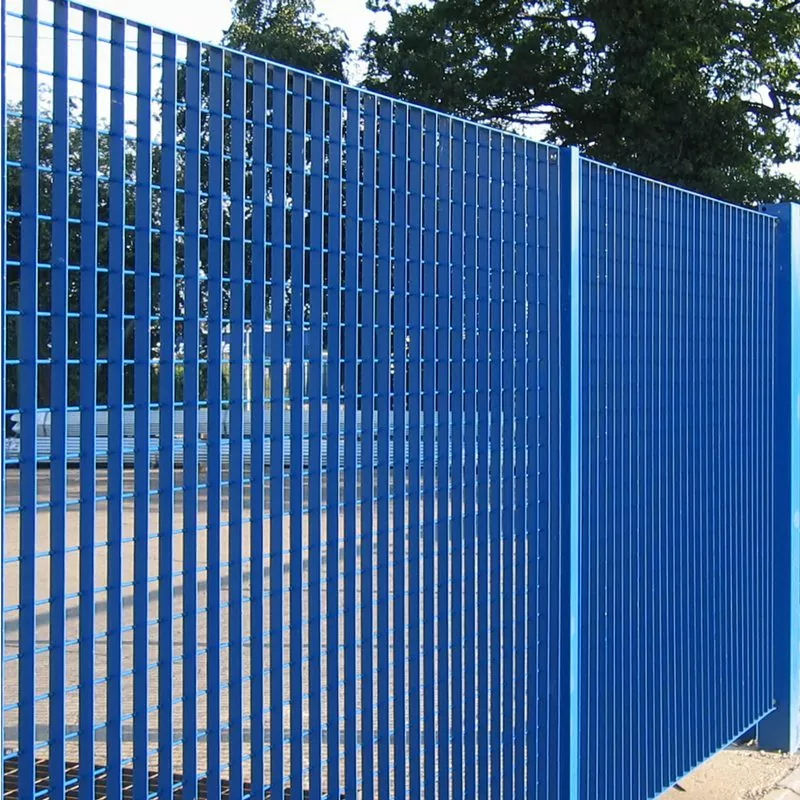

The fence panels are manufactured without lugs for a direct panel to post fixing, making the strongest possible connection. The outside flat bars of each panel are bolted to 100x55mm IPE posts with stainless steel M10 dome headed bolts and snap-off nuts; the flanges of the IPE post protecting the bolt.

Posts can be supplied with cranked extensions for barbed wire or to carry an additional inclined panel for extra security. Alternatively, anti-intruder spiked top-bars can be attached to gates or fence panels.

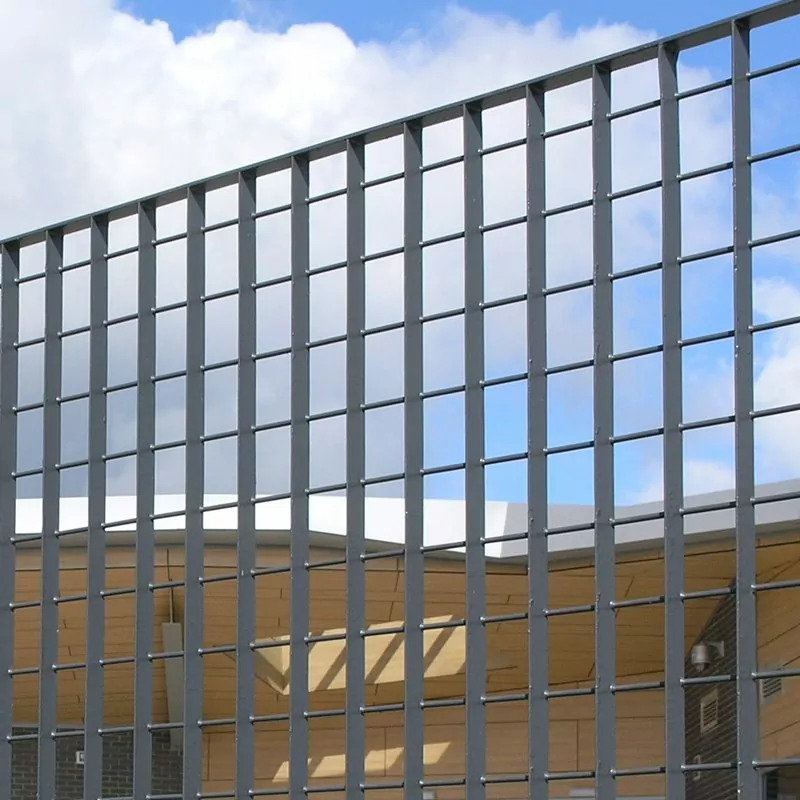

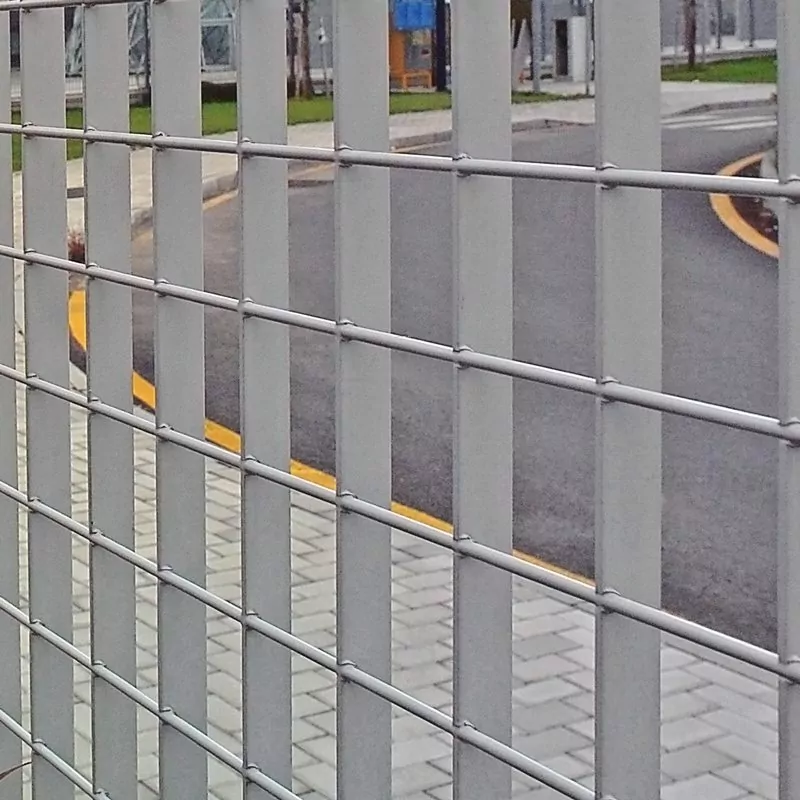

Mesh (c/c): 43×44 mm
Standard Panel Heights (nominal: 2000, 2200, 2400, 2600, 2900 mm
Standard Panel Width (nominal): 1890 mm
IPE Post: 100×55 mm

In addition to the standard panel, a narrow width closing panel will be provided to suit the end of a fence run.

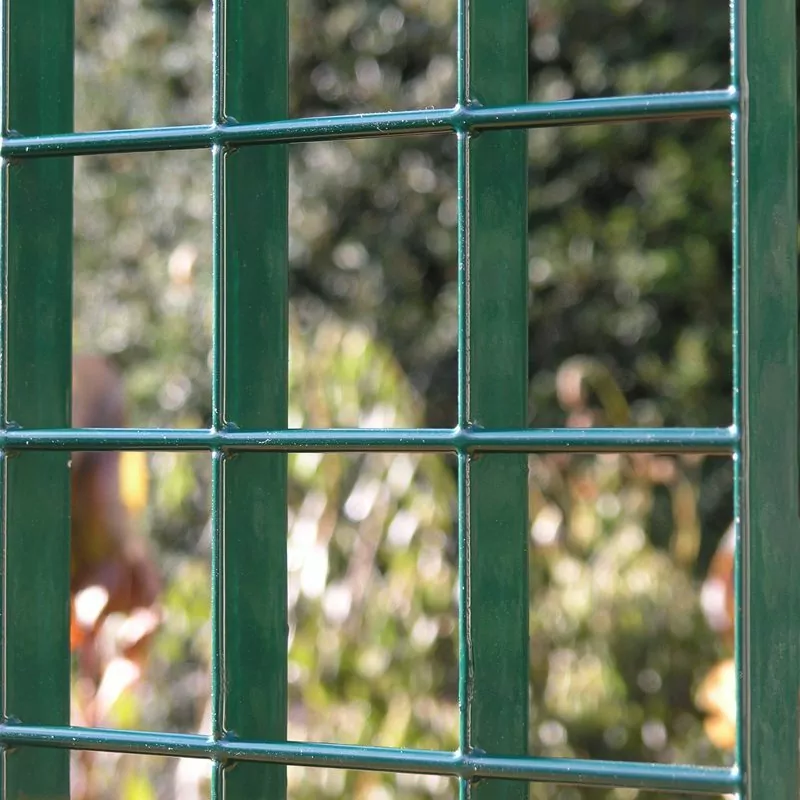

Swing-hinged single or double leaf, bi-folding, pivot and sliding gates are made with infill panels to match. Palermo-4HS is supplied hot-dip galvanized with an optional polyester powder coating in any RAL colour. All grating fences are made in compliance with BS 1722-14.
