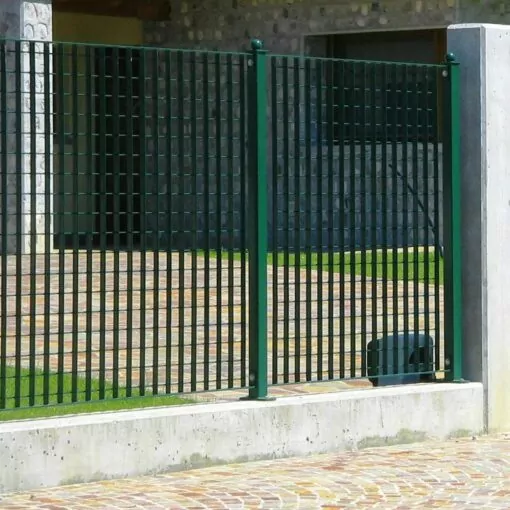

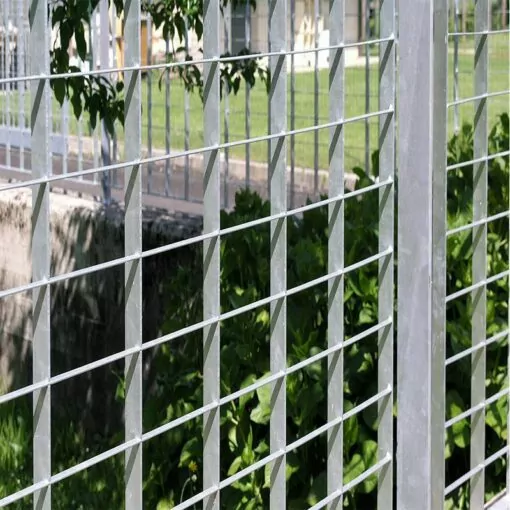

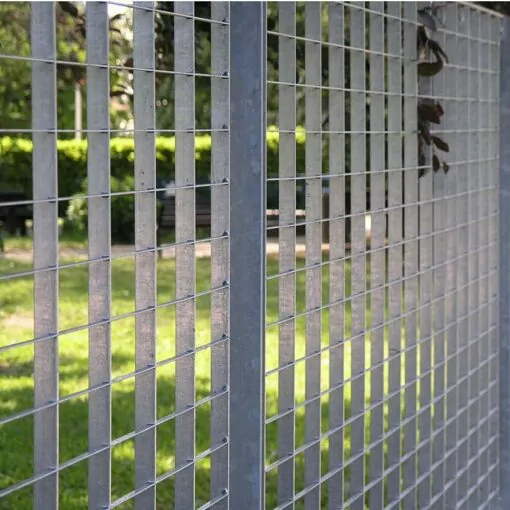

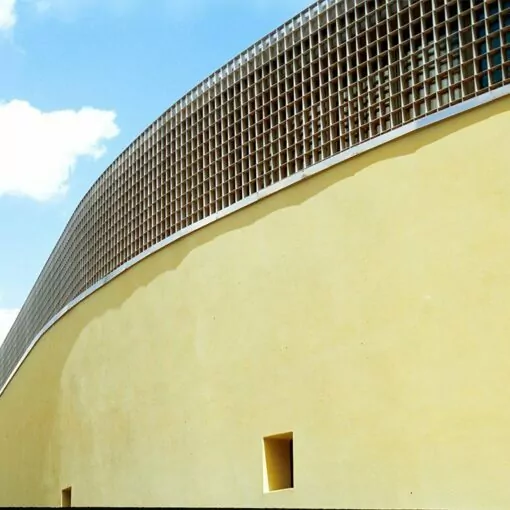

The Garda fences are part of the pressure locked range; a superior range of products for prestige projects.

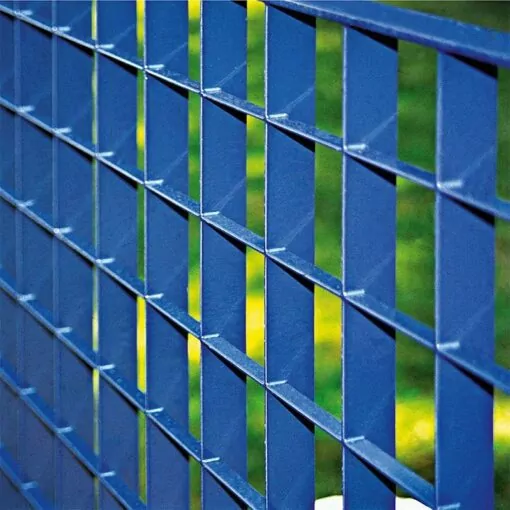

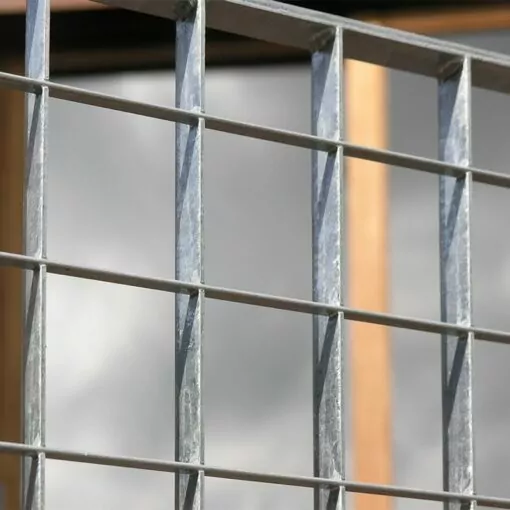

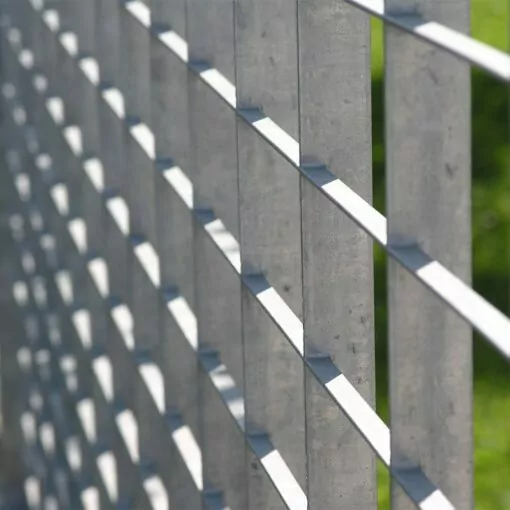

The fence panels are made entirely from flat bars using a pressure-lock process which produces a very high quality grating with perfectly formed intersections. This delivers an exceptionally crisp, architectural aesthetic.

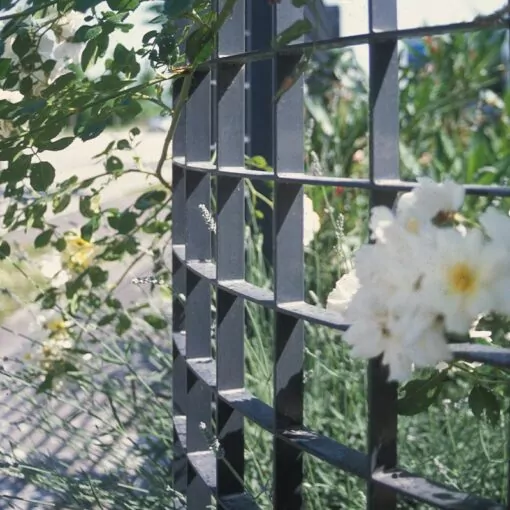

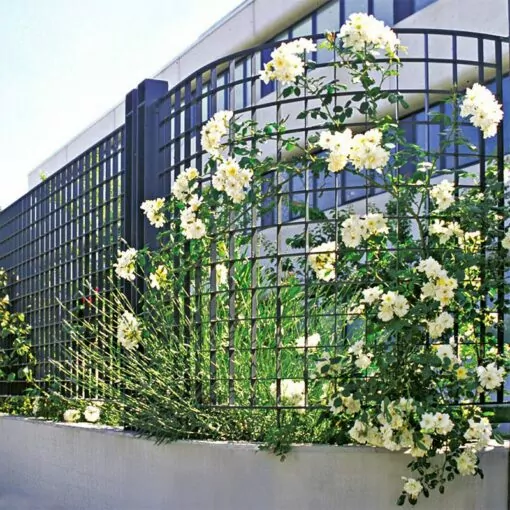

The Garda range offers a choice of four standard apertures and is characterised by its square aperture. Garda-99 and Garda-132 have an open, unobtrusive construction and are effectively used as trellis to support planting.
Garda-44: 44×44 mm (c/c)
Garda-66: 66×66 mm (c/c)
Garda-99: 99×99 mm (c/c)
Garda-132: 132×132 mm (c/c)
Standard Panel Heights: 935, 1199, 1331, 1463, 1727, 1991 mm
Standard Panel Width: 1992 mm
Posts: RHS or Flat Bar
In addition to standard sizes, panels can be ordered to non-standard heights and widths. Taller fence heights are achieved by an arrangement of stacked panels.
Swing-hinged single or double leaf, bi-folding, pivot and sliding gates are made with matching infill panels. Panels and posts are supplied hot-dip galvanized with an optional polyester powder coating in any RAL colour.
All grating fences are made in compliance with BS 1722-14.
