DeltaWing Louvre Screening
DeltaWing is a steel louvered panel system that is suitable for a wide variety of screening applications. It is notable for its durability and the perfectly formed intersections which form a crisp, contemporary aesthetic. It is made in a range of specifications, offering a choice of total or partial visual screening with a corresponding level of free area for ventilation.
Composition & Appearance:

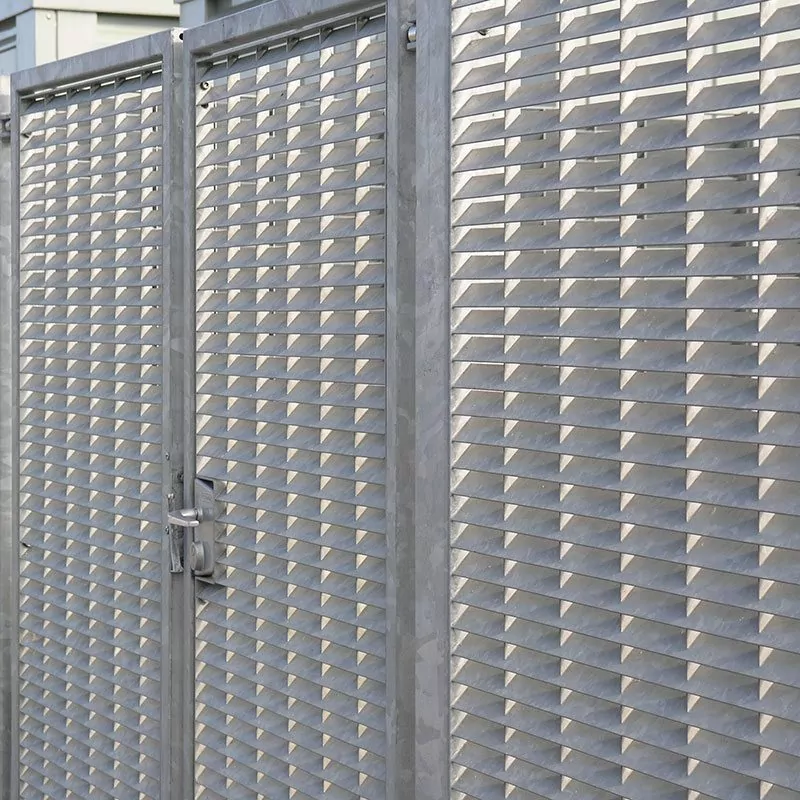

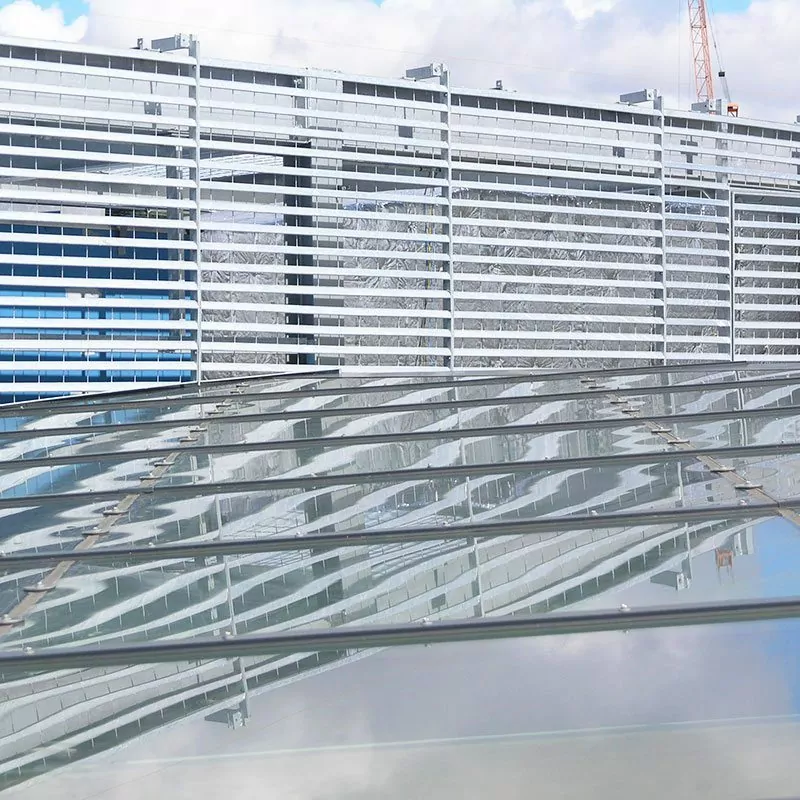

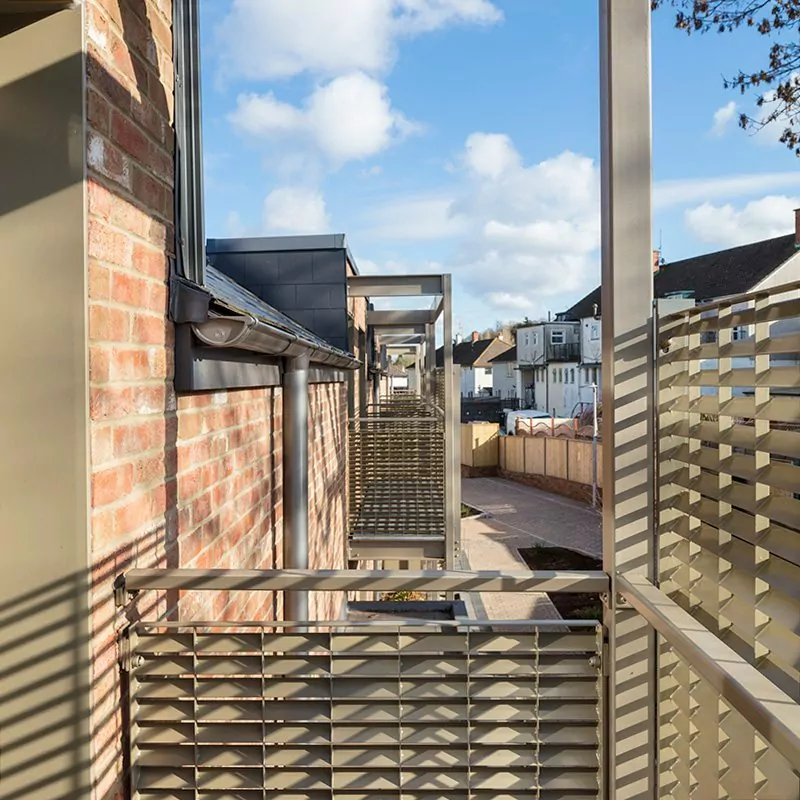

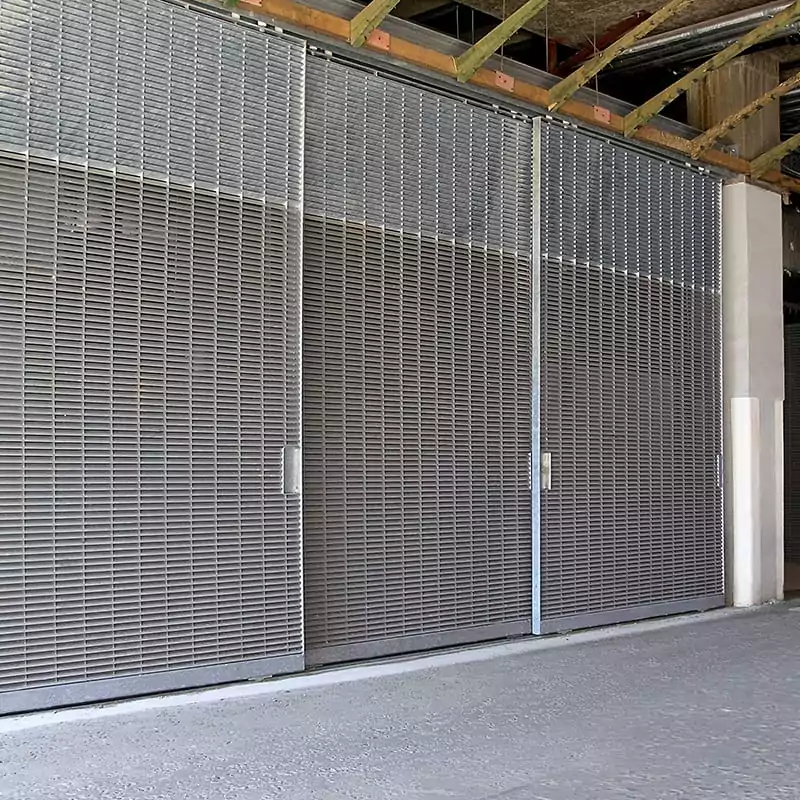

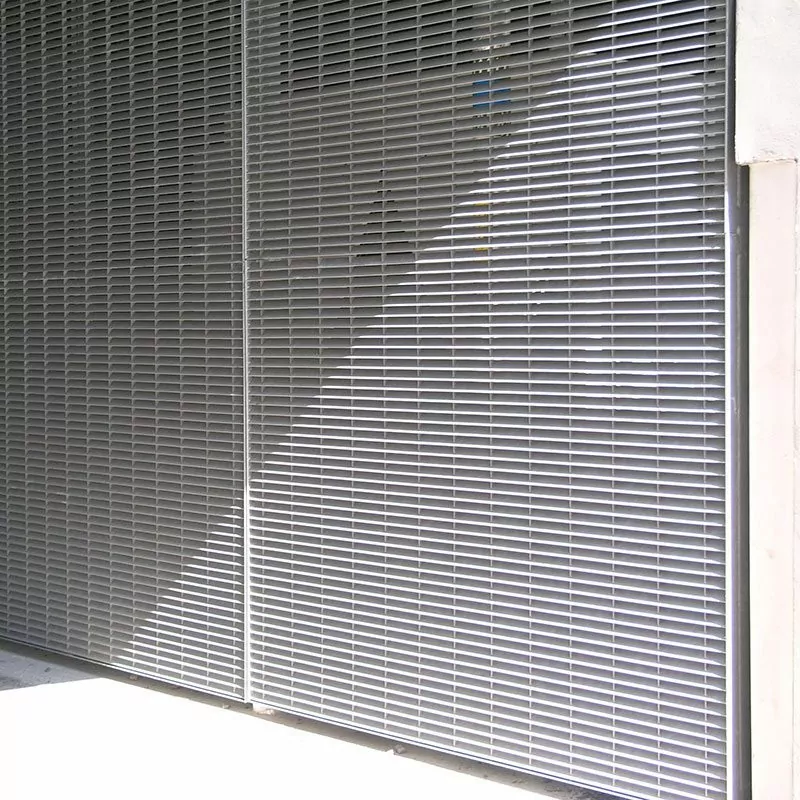

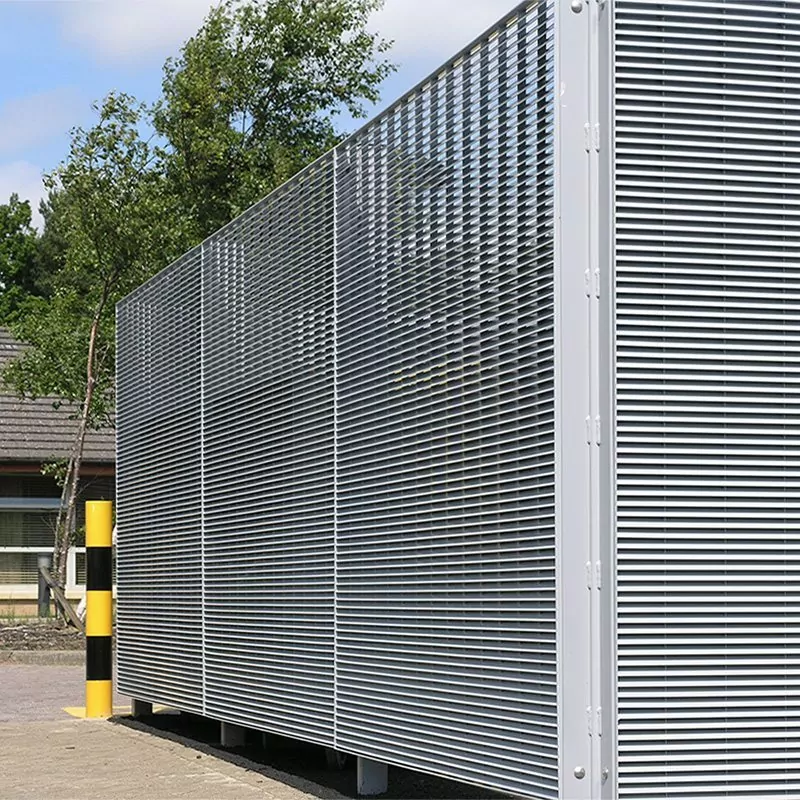

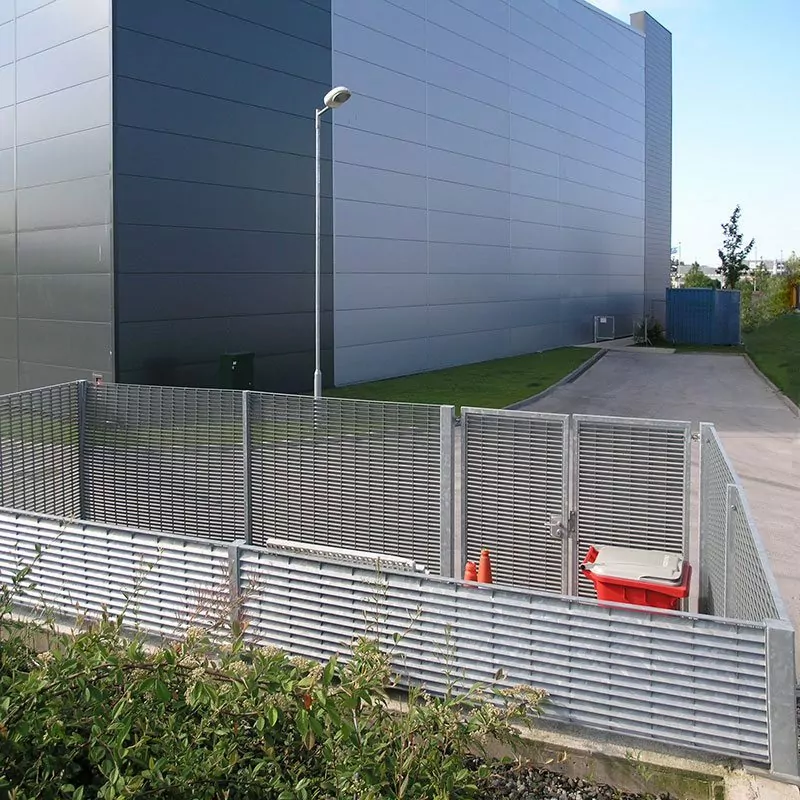

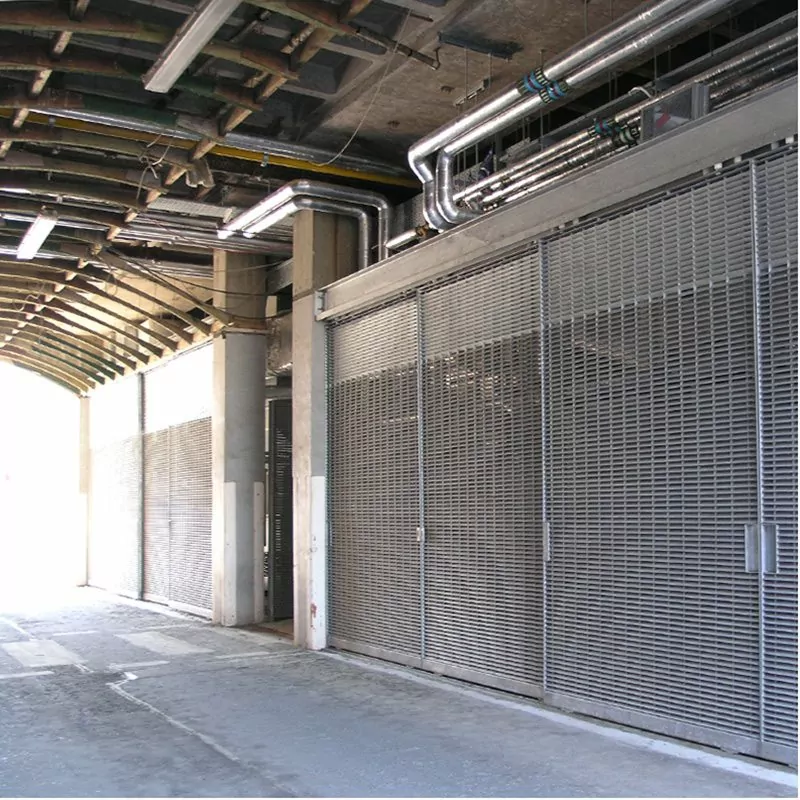

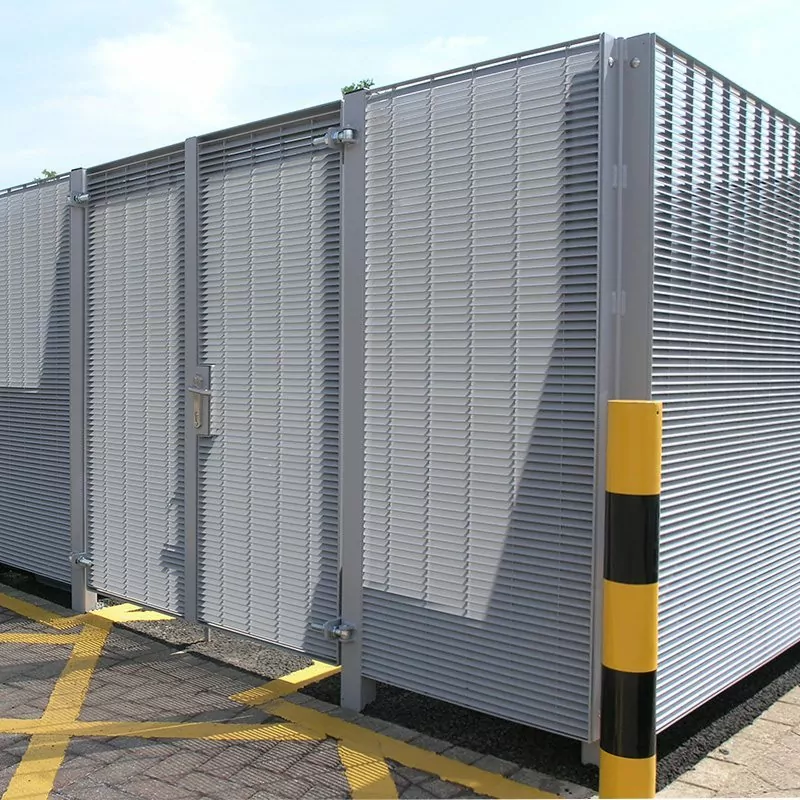

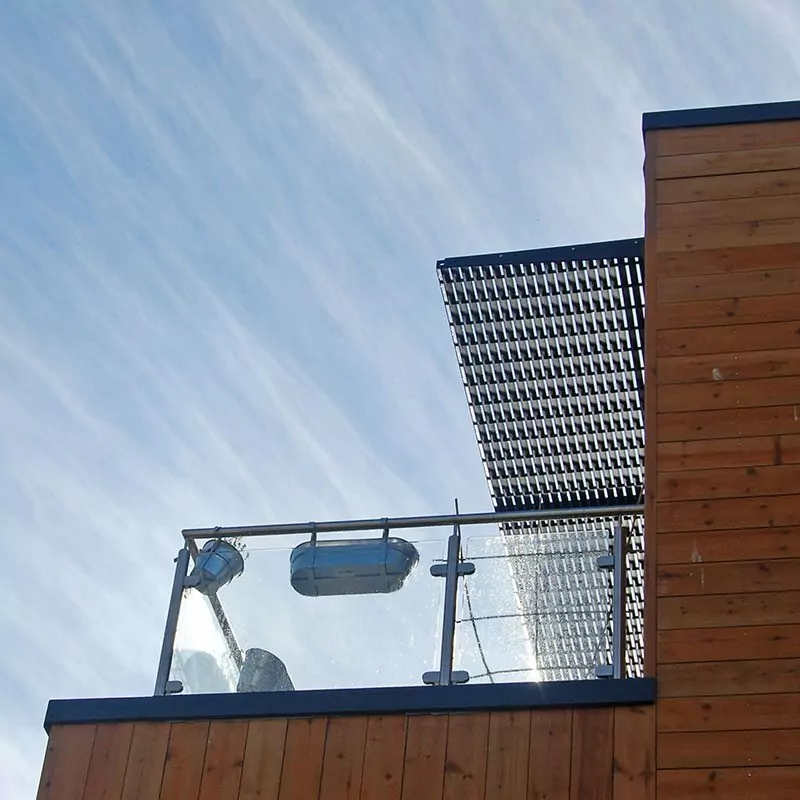

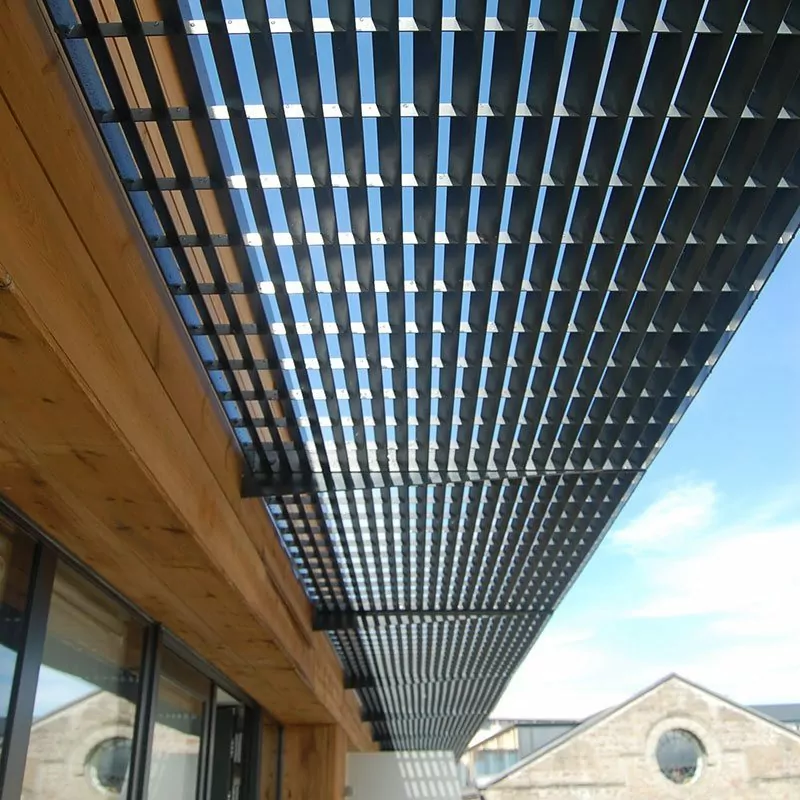

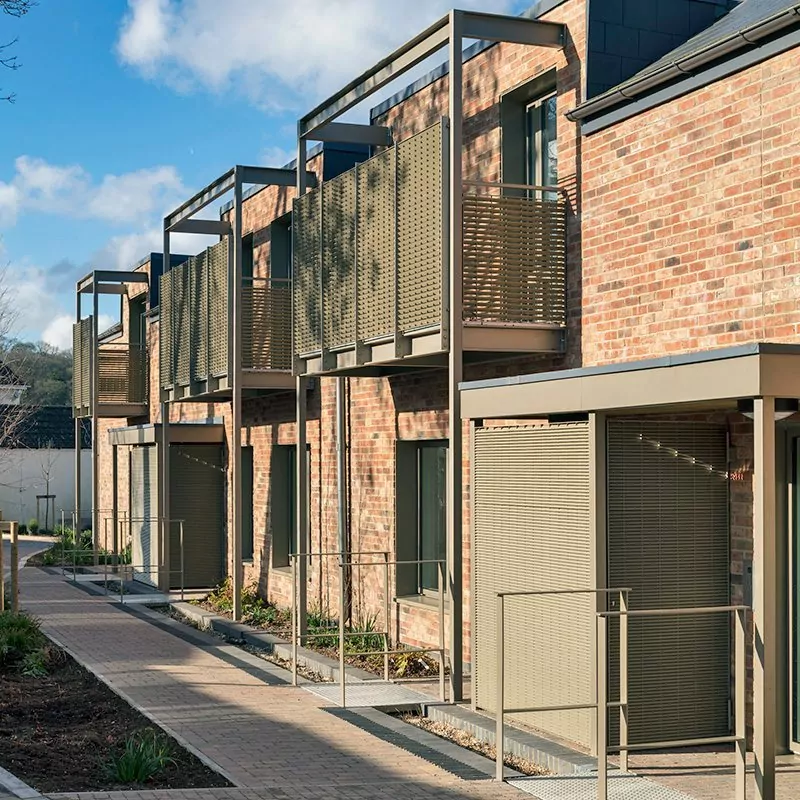

Framed panels are made to custom-sizes up to 3m2 (e.g. 2000x1500mm) for a wide variety of applications: wall cladding, car park screens, compounds, plant housing, ventilation grilles, balconies and balustrades, wheelie bin stores and brise soleil. The robust steel construction is particularly suitable for ground and street-front locations.

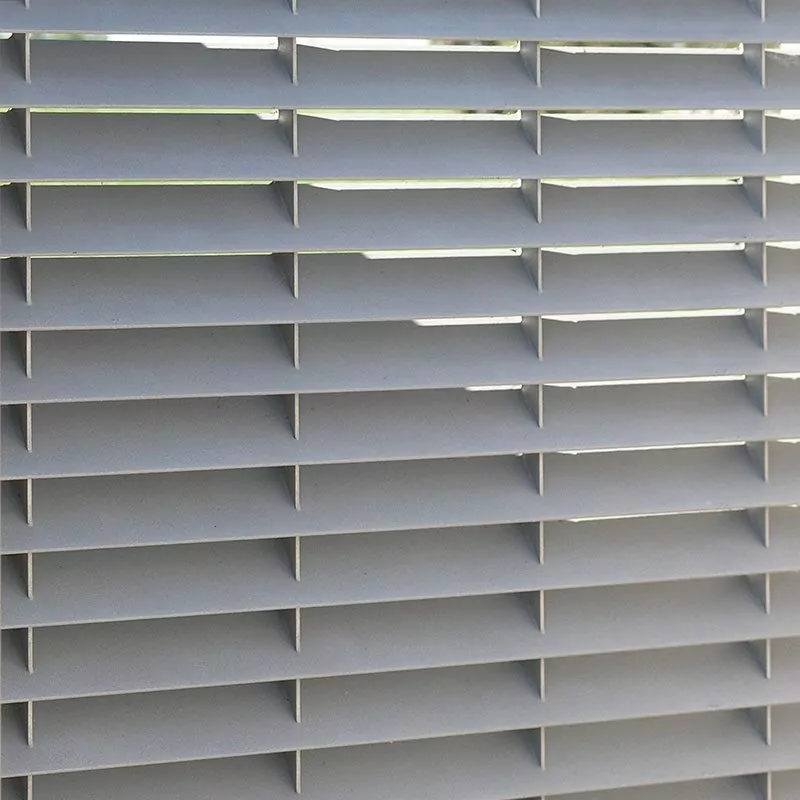

The louvred panel is manufactured from inclined flat bars set at 45o, which are pressure locked to in-line vertical flat bars. The louvres can be spaced at any increment of 11mm to provide the required level of screening/free area to meet particular requirements. Vertical bars are generally spaced at 132mm but this is also variable.
DeltaWing-100: 22mm louvre spacing, 100% visual screening, 60% free area

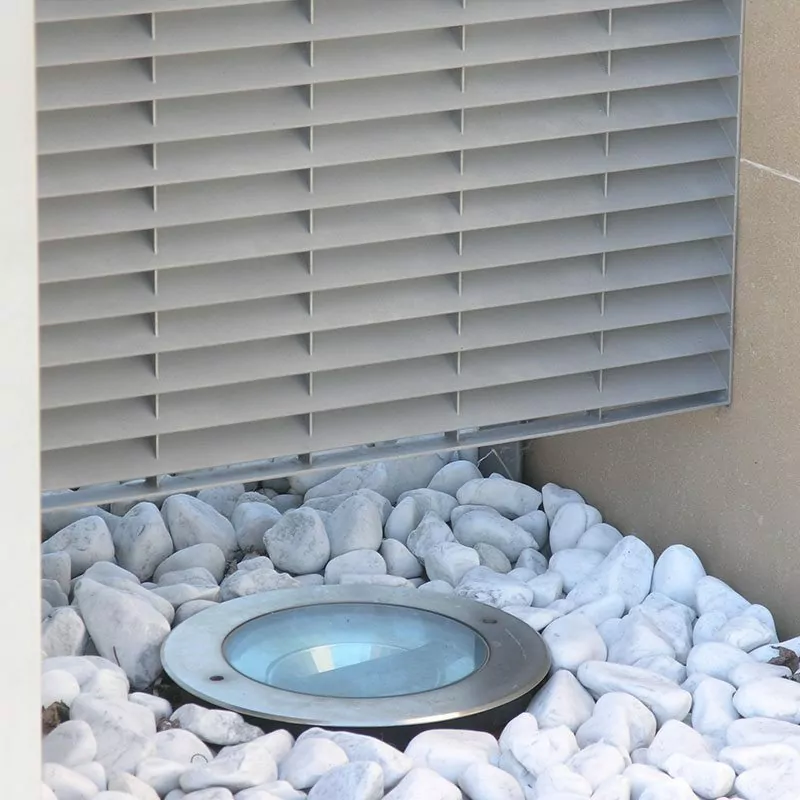

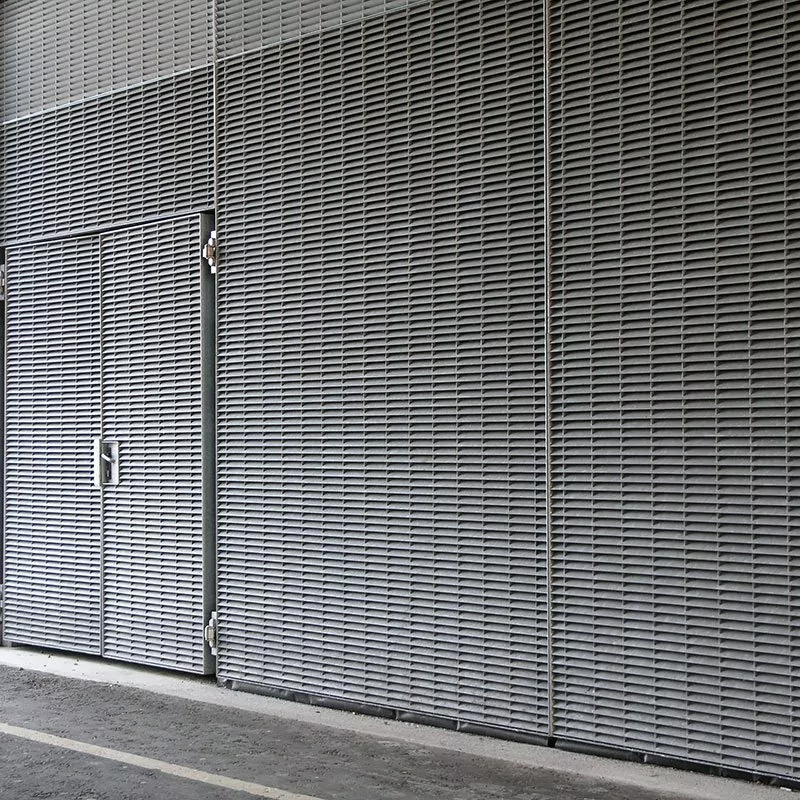

DeltaWing-90: 33mm louvre spacing, 90% visual screening, 63% free area
DeltaWing-70: 44mm louvre spacing, 70% visual screening, 65% free area

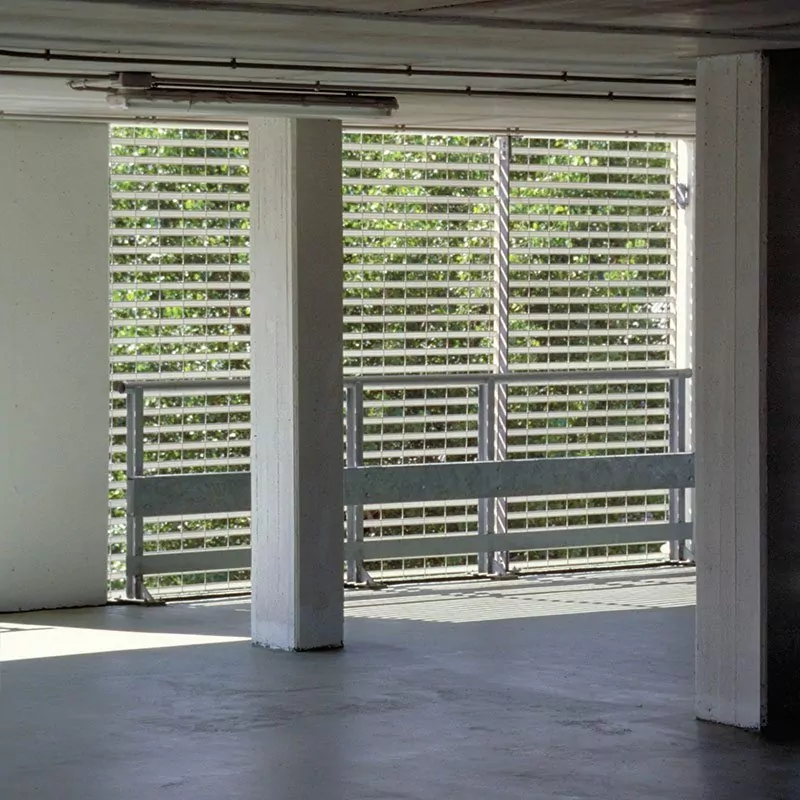

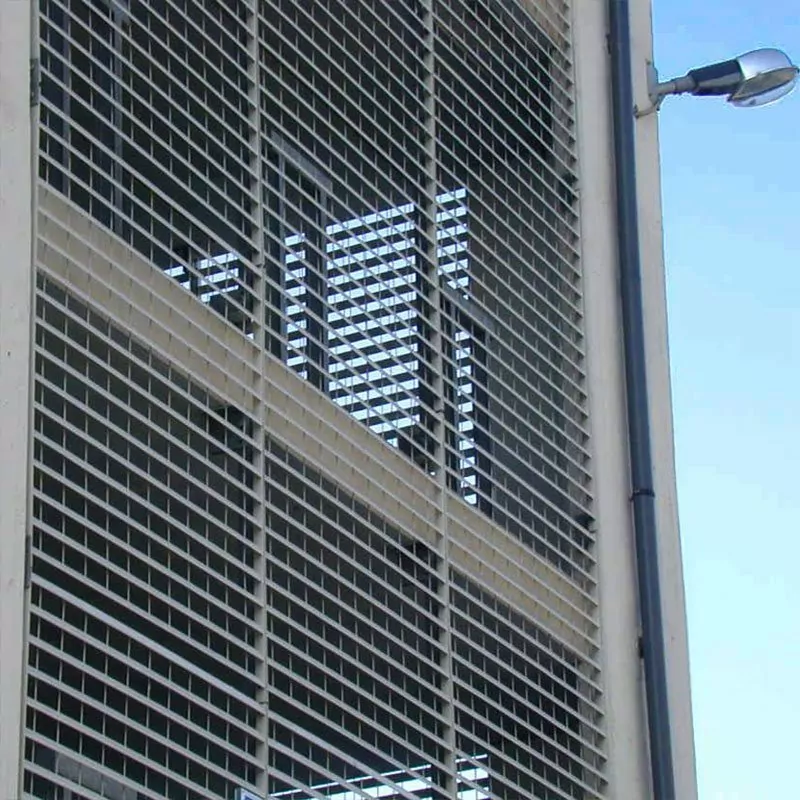

DeltaWing-45: 66mm louvre spacing, 45% visual screening, 66% free area
DeltaWing-34: 67mm louvre spacing, 34% visual screening, 67% free area
Panels and ancillary steelwork can be supplied galvanized only or galvanized and powder coated to any RAL colour.
