Quattro & DemiQuattro

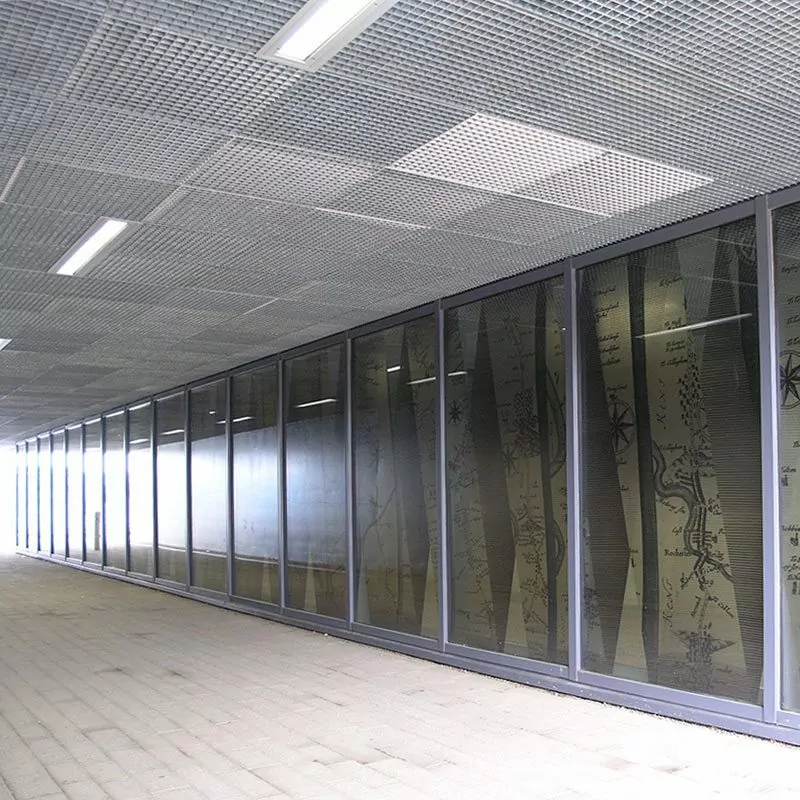

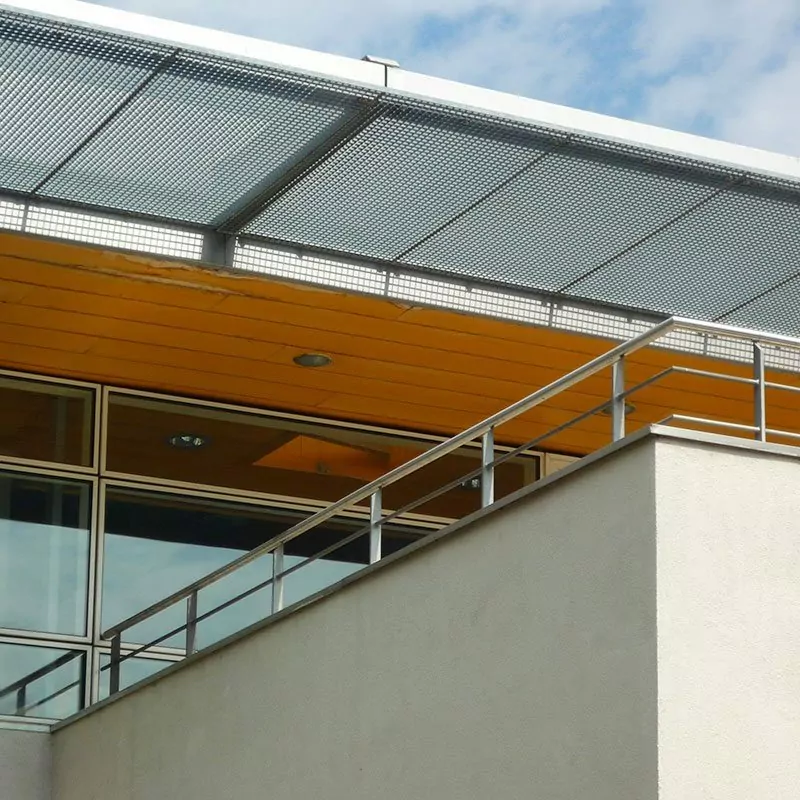

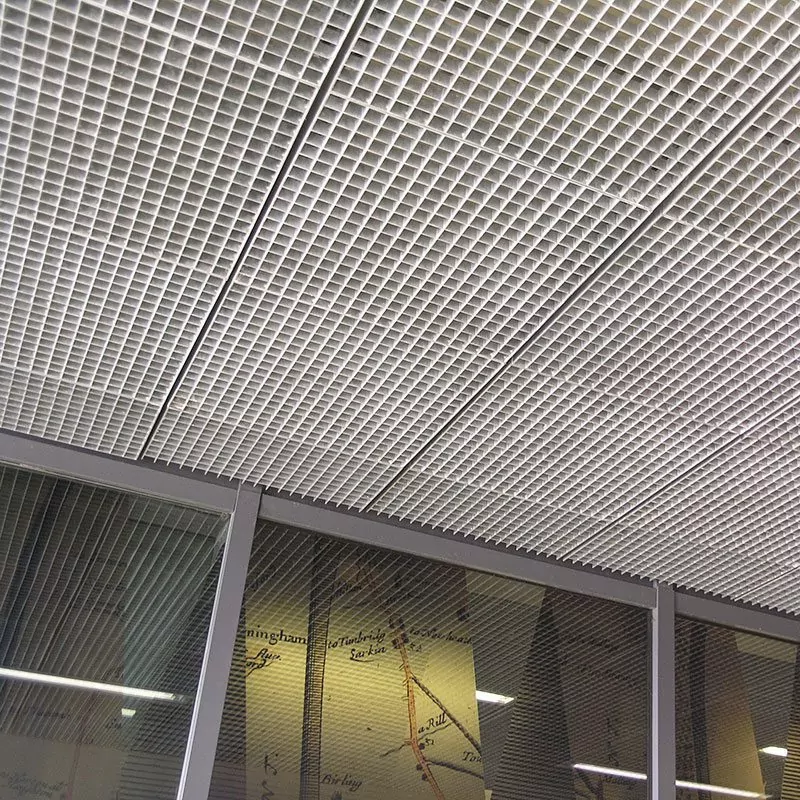

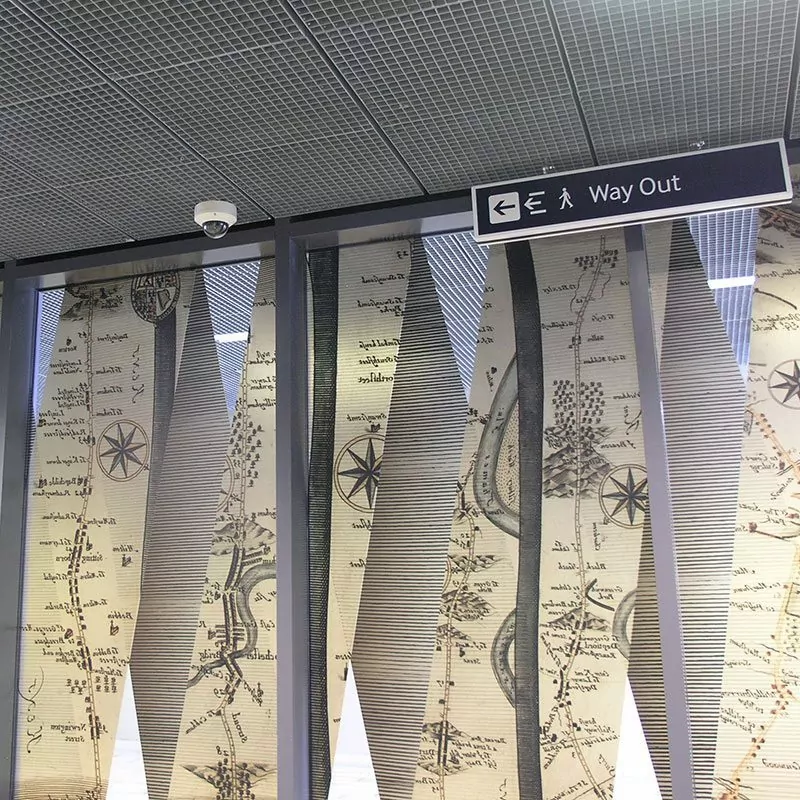

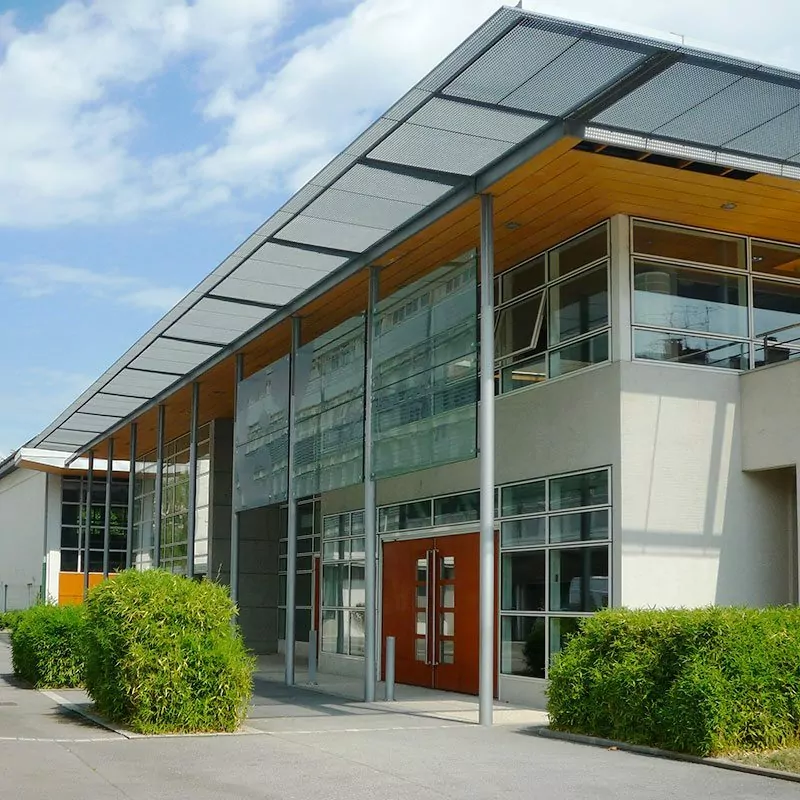

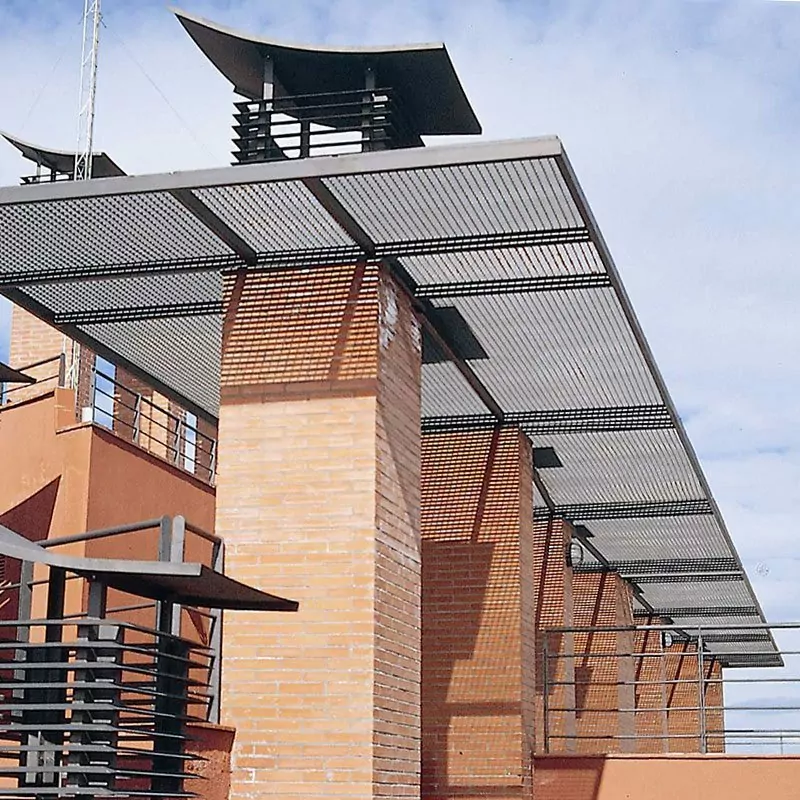

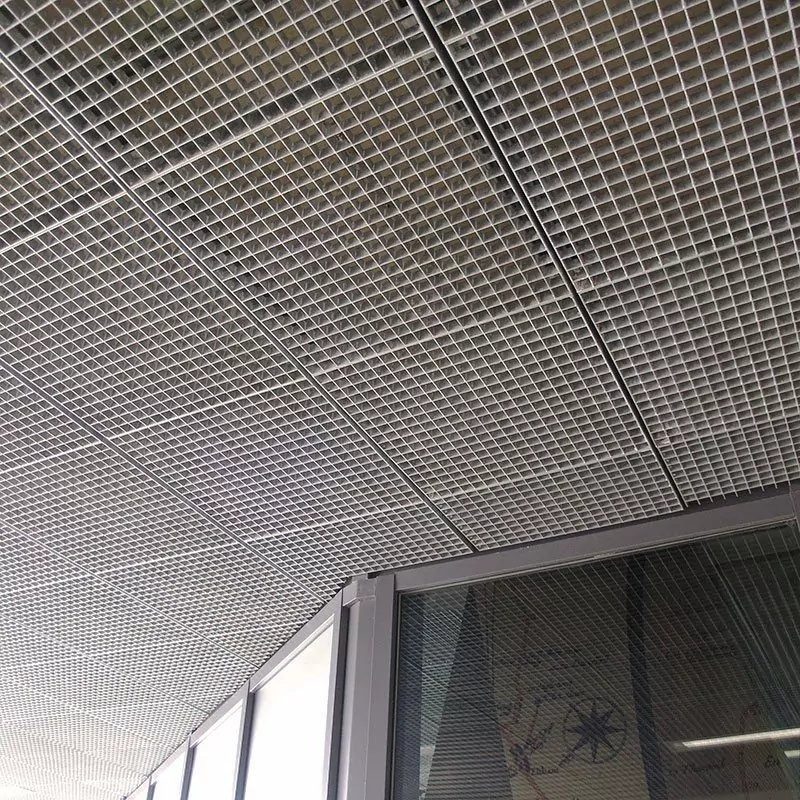

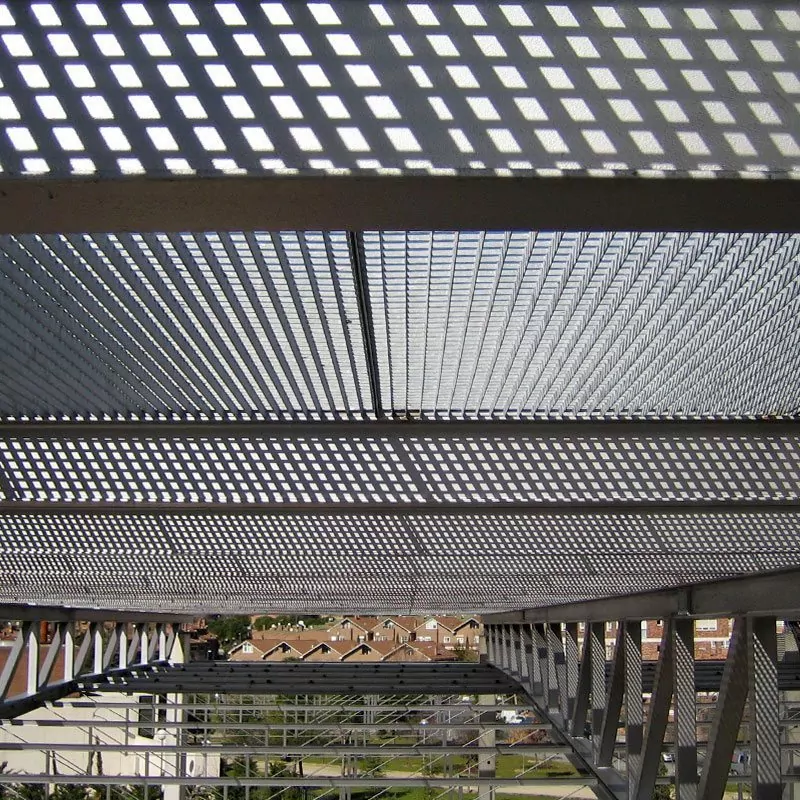

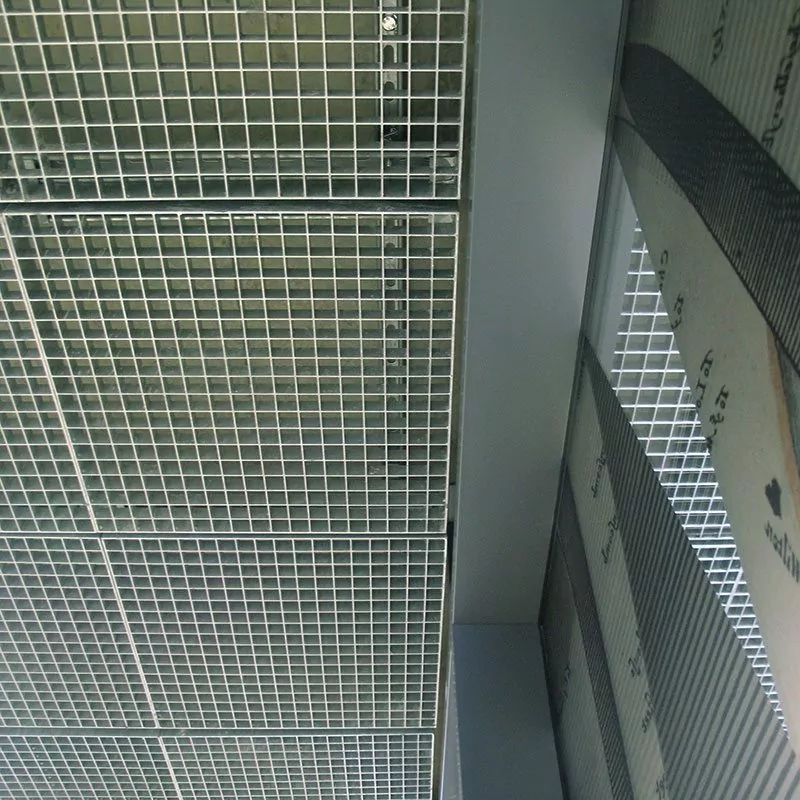

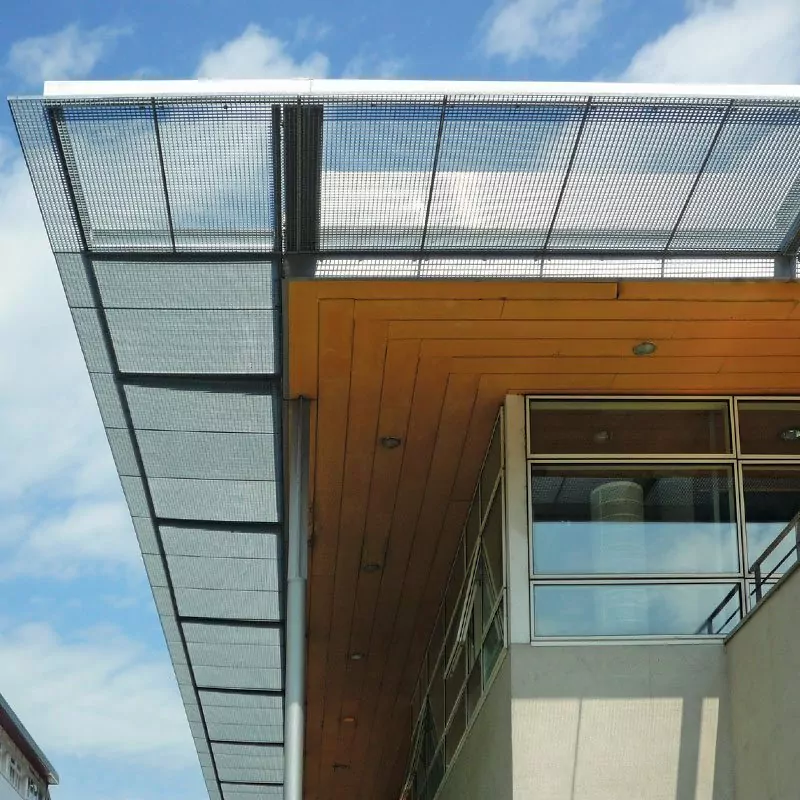

The Quattro range is defined by its square aperture.The process of pressure-locking produces a very high quality material with perfectly formed intersections, resulting in the most aesthetic grating for all types of vertical applications. It can be effectively used as a balustrade, ceiling panel or brise soleil and can be supplied with an appropriate depth of bar to provide the required level of screening.

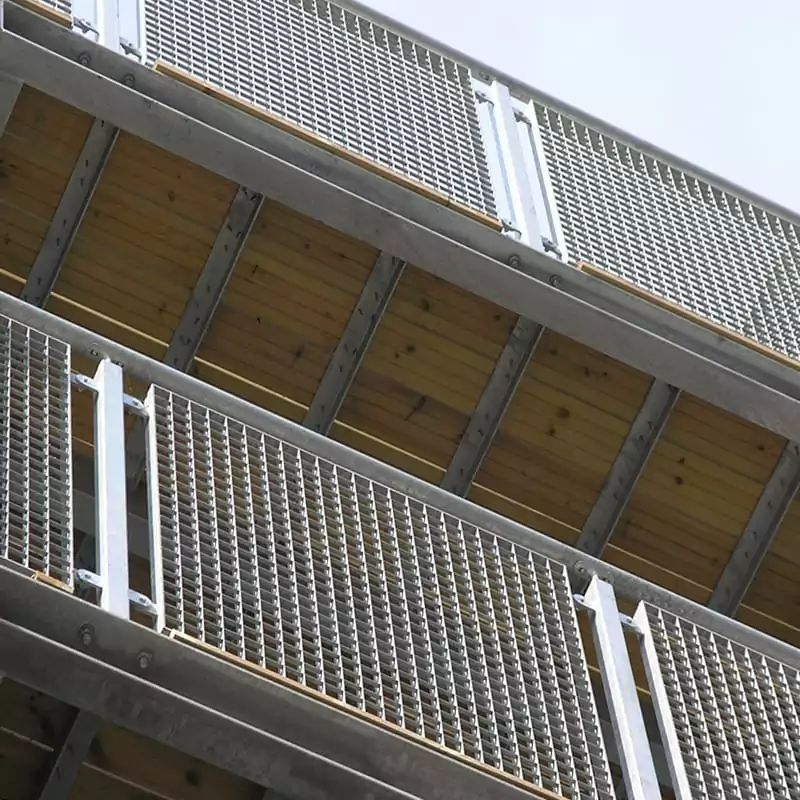

Quattro: has equal flat bars for an identical appearance from both the inside and the outside, making it a popular choice for balcony balustrades.

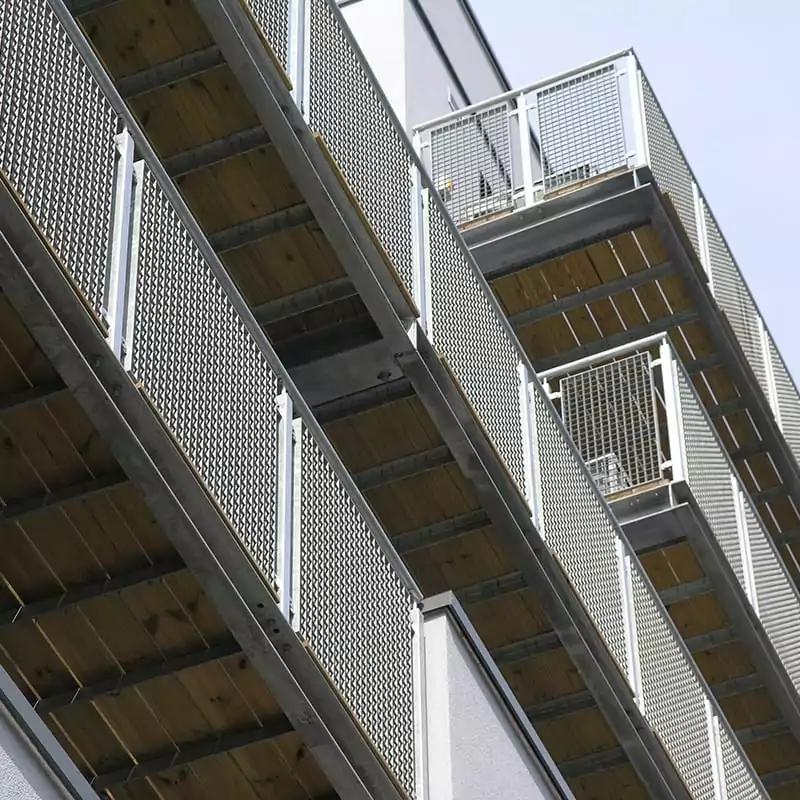

DemiQuattro: has flat bars of unequal depth and is therefore slightly more economical; the standard section of horizontal transverse bar is 10×2 mm.

The flexibility of the manufacturing process can provide gratings to individual specifications of weight, aperture and performance.

Mesh sizes (c/c): Quattro-33/DemiQuattro-33 (33×33 mm);
Quattro-44/DemiQuattro-44 (44×44 mm); Quattro-55/DemiQuattro-55 (55×55 mm);
Quattro-66/DemiQuattro-66 (66×66 mm)
Additional mesh sizes are available on request.

A 25×2 mm bar is supplied as standard but alternative sections are available:
25×3; 30×2; 30×3; 30×4; 40×2; 40×3; 40×4; 40×5 and 50×3 up to 70×5 mm.

All panels are made to custom sizes and supplied framed and fully finished, hot-dip galvanized with an optional polyester powder coating in any RAL colour.

Quattro-66

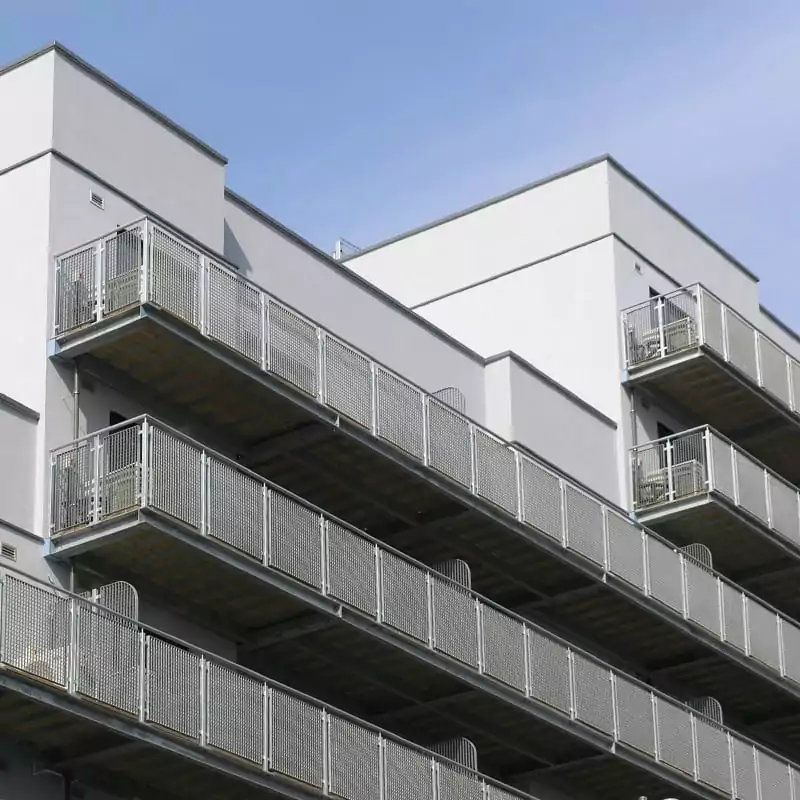

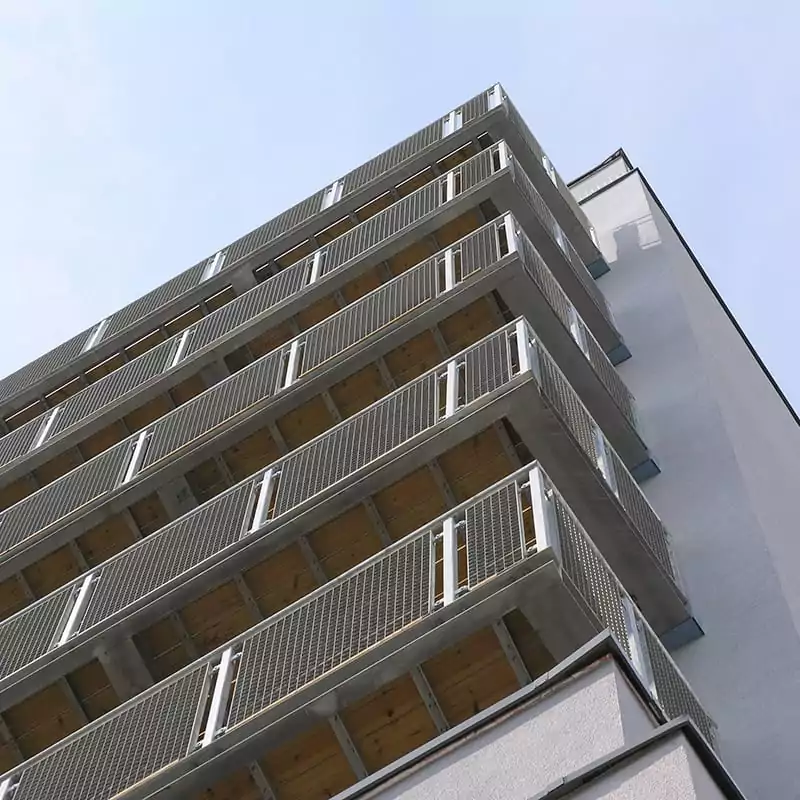

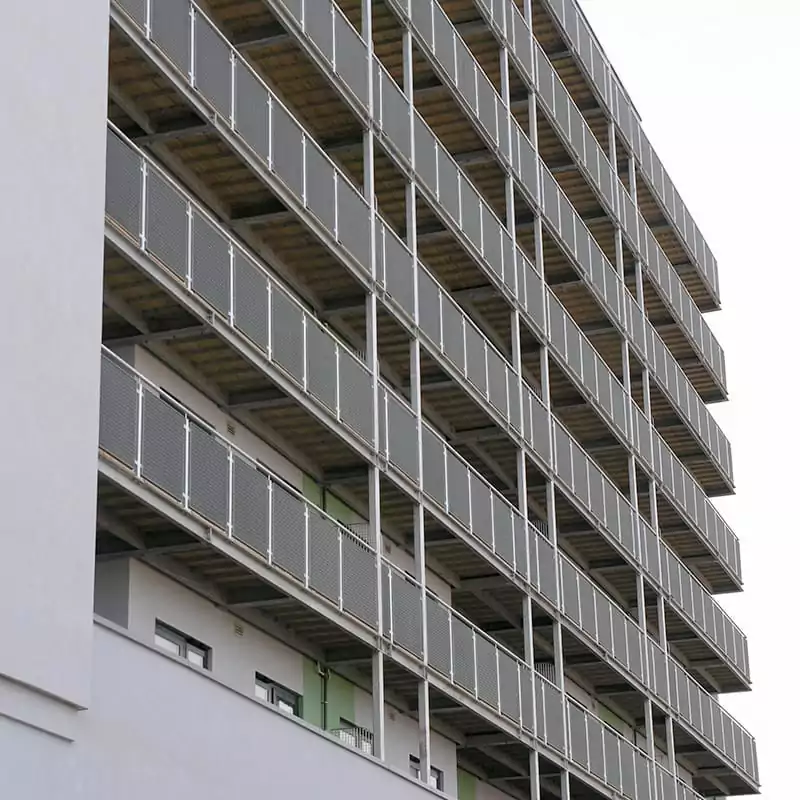

DemiQuattro-44
